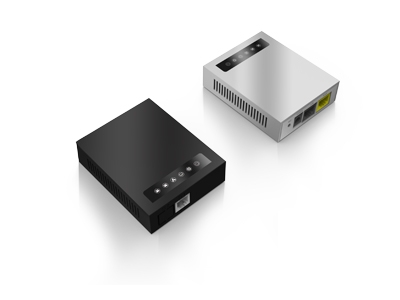

Connect your analog devices to your IP phone system. NICEUC ATA NC-MG01 gateway supports 1 ports FXS and up to two SIP servers in SIP 2.0, correlative RFCs, T.38.
NICEUC ATA series are VoIP analog telephone adaptors (ATA) used for connecting analog devices such as phones and fax machines to an IP phone system.
Phone features
• Linux OS
• Supports SIP 2.0 (RFC3261) and correlative RFCs
• SIP supports 2 SIP servers, and Group servers
• Supports SIP UDP/TCP
• SIP support SIP domain, SIPauthentication (none, basic,
MD5),DNS name of server, Peer to Peer/ IP Call
Key Features
• System led to indicate power/phone/register status
• Supports T.38 FAX
• Supports BY-PASS FAX
Audio Features
• Codec: G.711A/u, G.729AB, G.726-32
• DTMF: In-band, RFC 2833 and SIP INFO
• Voice Activity Detection (VAD)
• Comfort Noise Generation (CNG)
• Background noise suppression
• Adaptive jitter buffers
• Packet loss concealment
• Different country tones
Advanced Features
• Call forwarding (busy/ no answer/ always)
• Call transfer ( unattended/ attended)
• Call holding
• Call waiting
• 3 way call conference
• MWI
• Flexible dial plan
• Barring function for outgoing calls
• Caller ID(FSK/DTMF)
• Indication when N/A line available
• Dial via VoIP or PSTN as default selection
• Dial via PSTN when VoIP unavailable
• CLIR(rejects anonymous calls)
• CLIP(to make an anonymous call)
• Dial without registration
• Hotline/Warm-line
• Black List/ White List
Network/ Security Features
• WAN / LAN：10/100M Ethernet ports,
• Bridge mode and route
• PPPoE for xDSL
• VLAN（802.1Q/P）
• NAT (NAPT)
• NAT transverse :Support STUN client
• DHCP client on WAN/ DHCP server on LAN
• Main DNS and secondary DNS server
• DNS Relay
• NTP Client
• Firewall
• Web management access restricted
• VPN(L2TP/PTP)
• ping, trace, telnet
Maintenance & Management
• WEB management
• Management with different account right
• Recover firmware and factory reset through Uboot
• Upgrade firmware via HTTP,HTTPS, FTP, TFTP
• DHCP option66 and custom option for auto provisioning
• Auto Provisioning to upgrade configuration file
• Syslog
• Adapter Input: AC 100-240V
• Adapter Output: DC 12V/0.5A
• WAN Port -10/100 BASE-T RJ-45 for LAN
• LAN Port-10/100 BASE-T RJ-45 for PC
• FXS:1 RJ11
• Operation Temperature: 0〜40℃
• Relative Humidity: 10〜65％
• SDRAM: 64MB
• FLASH: 16MB
