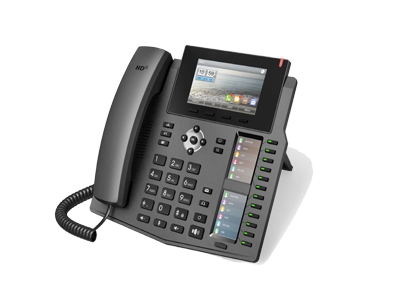

The new NICEUC M12 IP Phone is a high-end enterprise desktop phone which comes with 2 intelligent DSS Key-mapping color LCDs to increase enterprise users’ productivity.
The M Series IP Phones are a Business Grade IP handset with a huge range of features and flexibility. The M Series was designed and built for Enterprise Businesses with its modern design and ergonomic feel.
Highlights
●2 DSS Key-mapping LCD – 12 DSS keys corresponded to the LCD display to provide dynamic DSS/BLF functions up to five pages at virtualized total 60 DSS keys.
●Gigabit Ethernet – 10/100/1000Mbps Ethernet with POE enabled.
●Economic and Environmental Friendly design with Elegant
●Housing, with high-resolution TFT color display, delivering a rich visual experience.
●High Interoperability – Compatible with major platforms: 3CX, Asterisk, Broadsoft, Elastix, Zycoo, etc.
Generic
●6 SIP Lines
●HD Voice
●Support receiving Video call
●POE Enabled
●3 LCDs (Main + DSS)
●Handset(HS) / Hands-free(HF) / Headphone(HP) mode
●Intelligent DSS Keys
●Optional External Power Supply
●Industrial Standard Certifications: CE/FCC
Call Features
●Call out / answer / reject
●Mute / Unmute (microphone)
●Call Hold / Resume
●Call Waiting
●Intercom
●Caller ID Display
●Speed Dial
●Anonymous Call (Hide Caller ID)
●Call Forwarding (Always/Busy/No Answer)
●Call Transfer (Attended/Unattended)
●Call Parking/Pick-up (depending on server)
●Redial
●Do-Not-Disturb (per line / per phone)
●Auto-Answering (per line)
●Voice Message (on server)
●Local 3-way Conference
●Hot Line
●Hot-Desking
Phone Features
●Phonebook (1000 entries)
●Remote Phonebook (XML/LDAP)
●Call log (1000 entries, in/out/missed)
●Black/White List Call Filtering
●Screensaver
●Voice Message Waiting Indication (VMWI)
●Programmable DSS/Soft keys
●Network Time Synchronization
●Support Bluetooth headset (Through USB Dongle BT20)
●Support Plantronics Wireless headset (Through Plantronics APD-80 EHS Cable)
●Support Recording (Through Flash Drive)
●Action URL / Active URI
●CSTA
Video
●Video codec: H.264
●Video call resolution: QCIF / CIF / VGA
Audio
●HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz
●Frequency Response)
●Wideband ADC/DAC 16KHz Sampling
●Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR,iLBC,Opus
●Wideband CODEC: G.722, AMR-WB, Opus(16KHz)
●Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
●Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
●Packet Loss Concealment (PLC)
●Dynamic Adaptive Jitter Buffer up to 300ms
●DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
Networking
●Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
●IP Configuration: Static / DHCP / PPPoE
●Network Access Control: 802.1x
●VPN: L2TP (Basic Unencrypted) / Open VPN
●VLAN
●LLDP
●QoS
●RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)
Protocols
●SIP2.0 over UDP/TCP/TLS
●RTP/RTCP/SRTP
●STUN
●DHCP
●LLDP
●PPPoE
●802.1x
●L2TP (Basic Unencrypted)
●Open VPN
●SNTP
●FTP/TFTP
●HTTP/HTTPS
●TR069
RFCs:
354/1321/1350/1769/1889/1890/2131/2132/2616/2617/2661/2833/2976/3261/3262/3263/3264/3265/3268/3311/3489/3711/4346/4566/5630/
5865
Deployment & Maintenance
●Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
●Web Management Portal
●Web-based Packet Dump
●Configuration Export / Import
●Phonebook Import/Export
●Firmware Upgrade
●Syslog
Physical Specifications
●Main LCD x1: 4.3 inch (480x272) color-screen LCD
●DSS Key-mapping LCD x2: 2.4 inch (240x320) color-screen LCD
●Keypad: 46 keys, including
4 Soft-keys
8 Function keys (Hold, Call forward, Conference, Phone book, Call log, MWI, Headset, Redial)
4+1 Navigation keys + OK
12 Standard Phone Digits keys
3 Volume Control keys, Up/Down/Mute (Microphone)
1 Hands-free key
12 DSS Keys with tri-color LED
1 Page-Switch (PS) key
●HD Hands-free Speaker (0 ~ 7KHz) x1
●HD Hands-free Microphone (0 ~ 7KHz) x1
●HD Handset (RJ9) x1
●USB Port x1 (Connect with BT USB dongle or Flash Driver)
●Standard RJ9 Handset Wire x1
●1.5M CAT5 Ethernet Cable x1
●RJ9 Phone Jacket x2: Handset x1, Headphone x1
●RJ45 Ethernet Jacket x2: Network x1 (802.3AF PoE class 3),
PC x1 (Bridged to Network)
●Main Chipset: Broadcom
●DC Power Input: 12V/1A
●Power Consumption: POE: Idle –3.12~ 3.6W, Peak – 6~10.1W,
Adapter: Idle –1.97~ 2.32W, Peak –4.2~7.1W
●Working Temperature: 0 ~ 40℃
●Working Humidity: 10 ~ 95%
●Back Rack x1: Desktop Stand (Two angles)
●Color: Black
●Device Dimensions: 244 x 201 x 169.5mm(Desktop Stand)
●Gift Box Dimensions: 315 x 270 x 65mm
●Outer CTN Dimensions: 315 x 270 x 65mm (10 PCS)
