FXO / FXS to VoIP
Product: Analog Gateway (Or called as FXO or FXS VoIP Gateway too)
Analog Gateway typically connects residential, SMB or enterprise telephony equipment to the service provider VoIP network using an analog connection. This is done by converting the existing TDM interfaces such as FXO, FXS to VoIP. An analog gateway can connect to existing legacy PBXs using FXO interfaces, providing a trunk connection into the PSTN, or alternatively connects analog phones, faxes and modems directly into the VoIP network using FXS interfaces.
An interface between Voice over Internet Protocol (VoIP) and FXO / FXS.
Background:
Mass-market VoIP services started in 2004, and has been rapidly grew for recent years.
It is becoming increasingly common for telecommunications providers to use VoIP telephony over dedicated and public IP networks to connect switching centers and to interconnect with other telephony network providers.
Because of the bandwidth efficiency and low costs that VoIP technology can provide, businesses are migrating from traditional copper-wire telephone systems to VoIP systems to reduce their monthly phone costs.
And vice versa, many SIP providers who provide VoIP services, to match with customers’ requirements, should connect their VoIP networks to customers’ traditional PSTN network.
How to connect VoIP?
This can be implemented in several ways:
1. VoIP Media Gateway from E1 to SIP, connects PSTN and VoIP by conversion between E1 and SIP.
2. Analog Trunk Gateway from FXO / FXS to SIP, connects PSTN and VoIP by conversion between FXO trunk or FXS extension and SIP.
3. Wireless Gateway from GSM / CDMA / WCDMA to SIP, connects PSTN and VoIP by conversion between GSM / CDMA / WCDMA and SIP.
This page will describe way No 2 only.
Illustrate the solutions of FXO / FXS to SIP
In PSTN or traditional TDM switch network, provides FXO / FXS interface only.
Vice versa, in VoIP network, provides SIP only.

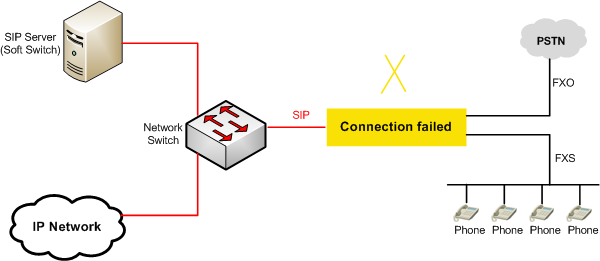

Signaling protocol are different in both side, so connection for both side will be failed.
For example:

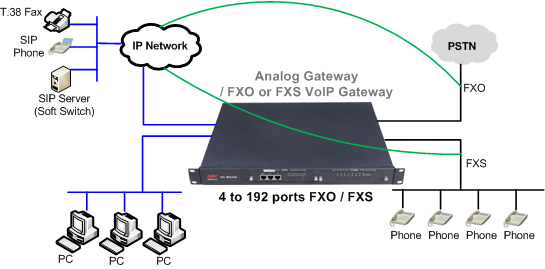

Under such a situation, Analog Gateway / FXO or FXS VoIP Gateway comes which makes connection between them.
By using Analog Gateway / FXO or FXS VoIP Gateway from NICEUC, connection between FXO / FXS and VoIP network is established. After connection is established, for FXO / FXS users, both of them will get benefit from VoIP technology; for SIP provider, they will easily sell their services and call route to traditional FXO / FXS users.
Why choose Analog Gateway / FXO or FXS VoIP Gateway from NICEUC?
•Easy connection is established between FXO / FXS / TDM and users’ PBX.
•Carrier-grade, Reliable, high performance and Cost-effective products; One model of this kind of products is showing on HUAWEI official website.
•Flexible call rules and call routes, fully match with special requirement from customers.
•Scalable modular design, it is convenient for users and customers to expand business easily in future. Capacity is from 4 to 192 ports FXO / FXS per unit.
Brief introduction for specification of the products used in this solution:
There two serials: one serial doesn’t have E1 port, another serial has E1 port.
•Analog Gateway / FXO or FXS VoIP Gateway without E1:
Item | NC-MG08 | NC-MG160 | NC-MG232 |
Analog fxs/fxo Port | 4-8 | 4-16 | 4-32 |
GSM/CDMA /WCDMA port | N/A | N/A | 2-16 |
SIP users | 200 | 200 | 200 |
Concurrent calls | 16 | 32 | 32 |
Ethernet port | 1 (10/100/1000M Base-T) | ||
Console port | 1 (RS232 port） | ||
SIP Compatibility | CISCO, Siemens, AVAYA, Huawei, ZTE, etc. | ||
Input voltage | AC 110-240V | DC -48V or AC 110-240V | DC -48V or AC 110-240V |
Power | 15W | 25W | 40W |
Machine Dimension | 240mm*145mm*25mm (Desktop) | 280mm*180mm*44mm-(Desktop) 472mm*260mm*44mm-(1U) | 480mm*286mm* 44mm-(1U) |
•Analog Gateway / FXO or FXS VoIP Gateway with E1:
Item | NC-MG320 | NC-MG640 | NC-MG930 | NC-MG900 |
Analog fxs/fxo Port | 32 | 64 | 192 | N/A |
E1 port (PCM) | 0 to 4 | 0 to 4 | 0 to 4 | 0 to 8 |
GSM/CDMA /WCDMA | 16 | 32 | 96 | N/A |
VOIP IP Channels | 128 | 128 | 128 | 256 |
SIP Users | 16-1024 | 16-1024 | 16-1024 | 16-2048 |
Ethernet port | 2 (10/100/1000M Base-T) | |||
Console port | 1 (RS232 port) | |||
SIP Compatibility | CISCO, Siemens, AVAYA, Huawei, ZTE, etc. | |||
Input voltage | DC -48V or AC 110-240V | DC -48V or AC 110-240V | DC -48V or AC 110-240V (Redundancy) | DC -48V or AC 110-240V |
Power | 40W | 80W | 160W | 30W |
Telephone line transmission distance | 10KM | 10KM | 10KM | N/A |
Machine Dimension | 480mm*286mm* 44mm (1U) | 480mm*300mm *88mm (2U) | 480mm*300mm *160mm (3.5U) | 480mm*286mm *44mm (1U) |
For more information about above products, please turn and click to the menu "product"-" Analog Gateway / IP PBX" on our website, or please contact us freely.
