A Signaling Gateway/Converter is a device that enables connectivity between different signaling networks by resolving signaling differences between legacy switches and new network equipment (such as VoIP Gateways).
Signaling Gateway/Converter makes interconversion from E1 to E1, which Convert any signaling between M3UA, Sigtran, SS7, ISDN PRI, Q.SIG, V5.2, R2/CAS, DPNSS.
NC-AD300D-P4 with 4E1 ports, makes bidirectional conversion between 2E1 and 2E1.
·Signaling support: SS7, ISDN PRI, Q.SIG, V5.2, R2/CAS, DPNSS;
·Interface Connector: 4E1, 1 10/100M network, 1 RS232 console;
·Link: 4 SS7 links, 4 PRI;
·Switching Volume: 2048 x 2048;
·Clocking accuracy: stratum 3 Clock;
·Clocking Source: E1, internal;
·Resource: 256 Voice channels, 256 meeting channels, 256 DTMF channels, FSK inspection and delivery;
·Convert any signaling between SS7, ISDN PRI, Q.SIG, V5.2, R2/CAS, DPNSS;
·Multi router, inter-office management, Intelligent router distribute and telephone traffic sharing;
·Grouping switching management;
·User identifier, can provide black and white name list or connect to the database;
·Powerful calling function to provide customize calling mode;
·Voice management function with voice record and voice play;
·Conference function;
·Calling number and called number modification;
·Real time telephone traffic monitor and handling;
·Can expand the capacity through multi stack;
·Provide CTILink API interface for user program control;
Interface | Standard | The Type of Connector | ||||
PCM | E1，G.703 | CC4/BNC/RJ45 | ||||
Ethernet Port | 10/100Base-T，IEEE802.3 | RJ45 | ||||
Serial Port | RS232 | RJ45 | ||||
Item | Specification | |||||
Input voltage | -48v DC or 200～240V AC | |||||
Power | 30 W | |||||
Dimension | （width×depth×height） | 480mm×290mm×40mm (1U) | ||||
Weight | 3 kgs | |||||
Environment | Temperature | 0℃～50℃ | ||||
Rel Humidity | Less than 80％ | |||||
Product Packaging | ||||||
Packaging | Carton Box | |||||
Packaging Size | 56cm*41cm*15cm | |||||
Detailed Photoes:

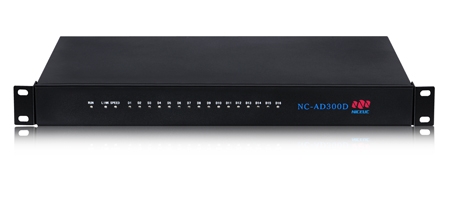

1. Front:
2. Back:
Solutions:
1. Signaling conver (Convert any signaling from E1 to E1)
2. E1 Recording System
3. The connection of Multi-Router:
4. The collection of SS7 Signaling:
